Standard J2534 Protocol Diagnostic Cable

1. Support most J2534 compatible software (HDS, TIS, 5054A, for JLR SDD)

2. Support most ELM327 software (ELMConfig, ScanMaster…)

3. Support ECU reprogramming and programming voltage in J2534 mode

4. Provide free software to diagnose J1979 compatible vehicles

5. Support Windows 8/10/11, 32/64 bits

The following languages are supported:

5054A: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovene, Czech

Russia, Greece, China

Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese

Honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese, Chinese

Available for JLR SDD: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean

For ELM327 Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak, Ukrainian

For scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian

For KTM FLASH: English, Russian

Note :KTM FLASH V1.20: Buyers need to purchase a USB dongle, which only supports the OBD part. It does not support workbench, boot, vag, dsg, and gearbox.)

Product highlights:

1. Both J2534 and ELM327 modes are supported. Automatic mode switching.

2. More acceleration. Faster communication and reprogramming.

3. More stable. Never let you down when it comes to reprogramming.

4. Easy to carry. Small package, easy to carry.

VNCI J2534 Nano protocol configuration:

1. ISO15765(Standard/Extension Framework).

2. ISO9141.

3.ISO14230.

4. J1850 PWM(supports IFR and 2X speed modes).

5. J1850 VPW(supports 4X speed mode).

6. Programming voltage.

7. Short to the ground.

8. ELM327 and command set version 1.5a

VNCI J2534 nano Hardware Configuration:

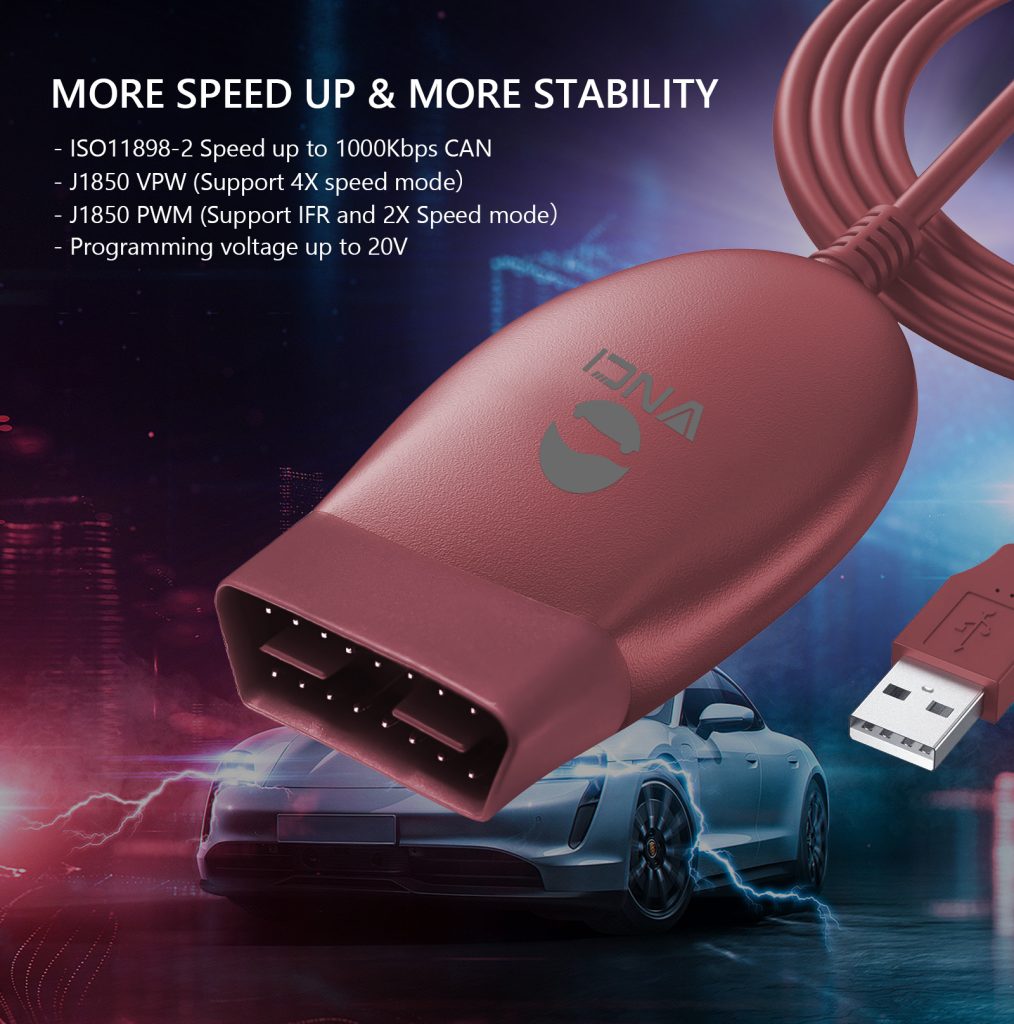

1. ISO11898-2 High speed CAN (OBDII pins 6 and 14) speeds up to 1000Kbps).

2. ISO9141 and ISO14230K wire (OBDII PIN 7 and PIN 15).

3.J1850 PWM (OBDII PIN 2 and PIN 10).

4. J1850 VPW (obdii pin 2).

5. Programming voltage (OBDII pin 12 or pin 13. Programmable voltage up to 20V).

6. Short to ground (OBDII pin 9). As short as OBDII PIN5).

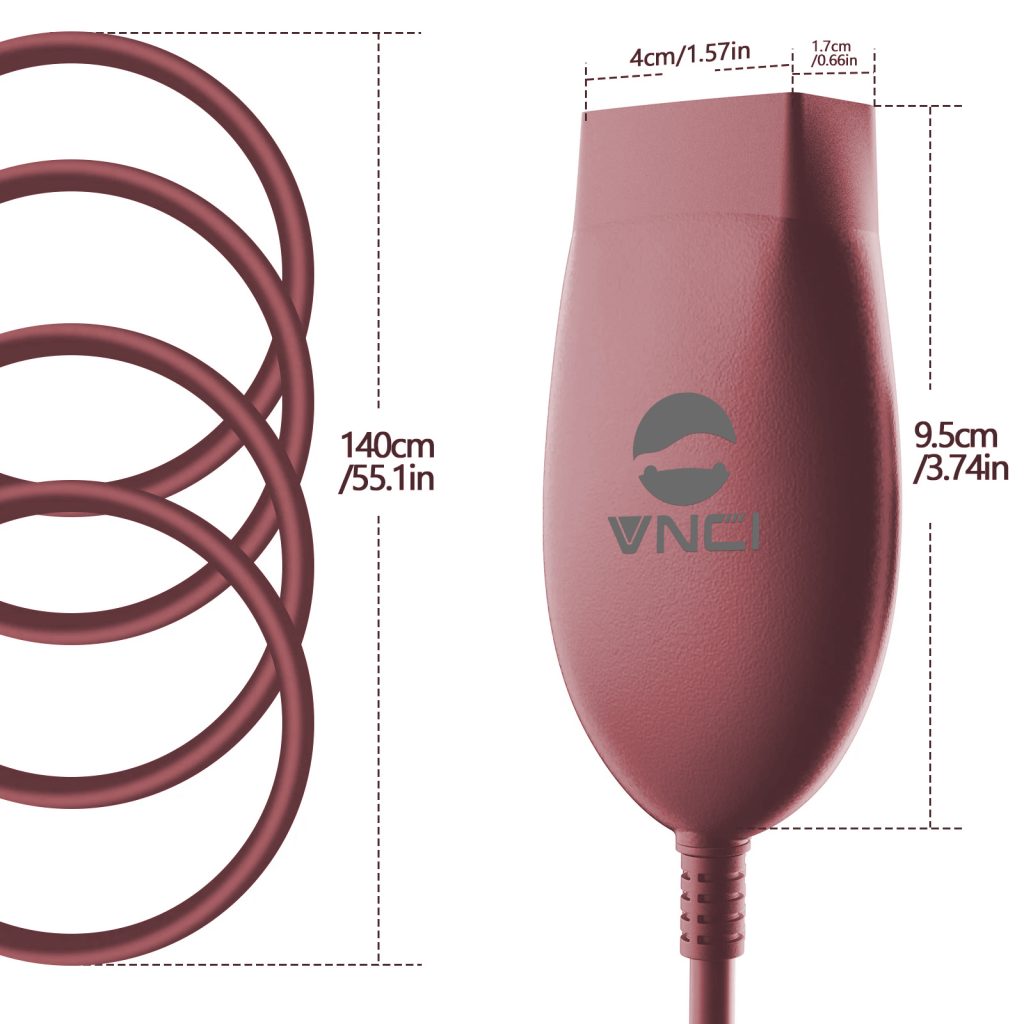

7. Dimensions (L * W * H): 95 mm * 55 mm * 23 mm

8. Environment :-20℃-45℃(-113℉)

9. Vehicle voltage requirement :8-18V DC

10. Car connection: molded DLC3(OBDII-16)

11. Host connection :USB 2.0

VNCI NANO J2534 Feature list:

We can Free software download link for Toyota TIS Techstream, For Honda HDS, 5054A, Forscan, Scanmaster, JLR SDD. Please Contact us to for software download link after you receive VNCI J2534 Nano if you need.
