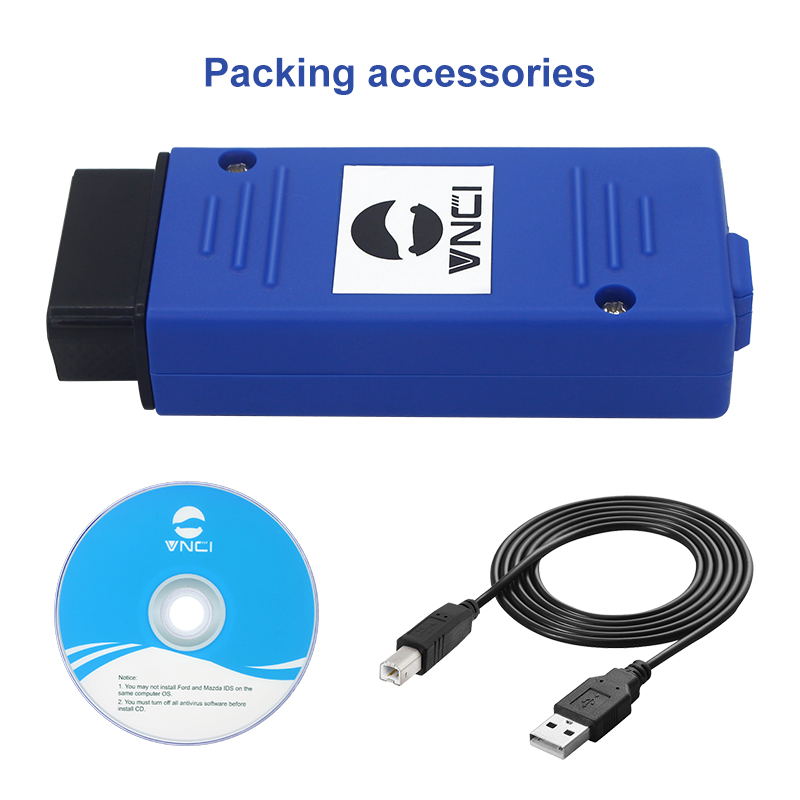

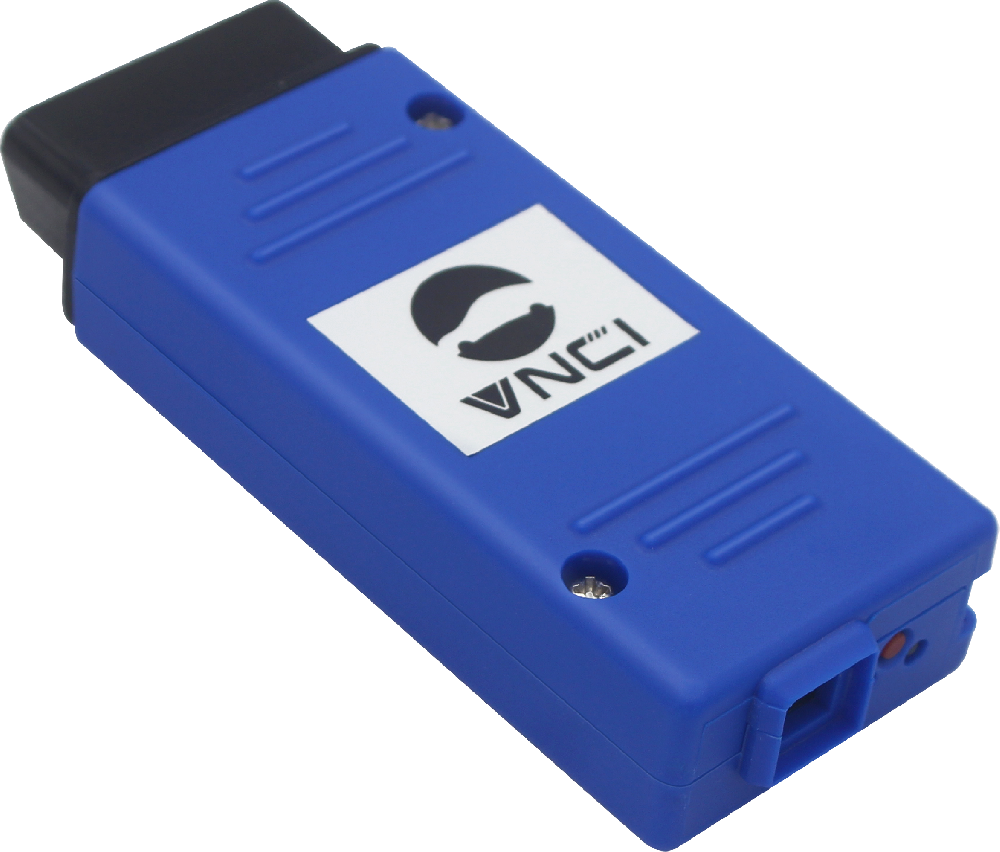

VNCI MF J2534 Ford Mazda special inspection supports Ford Mazda IDSv130+ software. No license is required to start the IDS software through the loader, and the IDS offline function can be used directly. FDRS and MDARS online software can be supported after installing the license. It can realize automatic switching function between J2534 Passthru and ELM327 modes, and supports J2534 passThru software system (Techstream/Hondas HDS/JLR SDD/Volvo VIDA/PCM falsh...etc) and ELM327 system (ELMConfig/Forscan/ ScanMaster......etc)
Product advantages
1. No license is required, start the IDS software through the loader
2. Support SAE J1850 module programming
3. Supports all J2534 Pashru and ELM327 software
4. Supports Ford Mazda models from 1996 to 2022
5. Great value choice, only RMB 599
6. Support online module programming and online PATS/RKE learning
7. Support SAE J1850 PWM 83.3K baud rate
8. Support 18V programming voltage, support FEPS5-20V, adjustable voltage, support reading programming voltage
9. Support EEC-V multi-item data recorder and support PTEC multi-item data recorder
10. Support power balance performance test and CANBUS module programming
11. Support online software update
12. Free Calculation of Ford Mazda PIN Codes Before 2012
VNCI MF J2534 portocol lists
ISO9141
ISO14230
J1850 VPW
J1850
PWM(Ford SCP)
ISO11898
HS(500K BPS)
ISO11898 MS(125K BPS)
ISO15765 HS(500K BPS)
ISO15765 MS(125K BPS)
FEPS(Flash EEPROM Program Signal)
