Product Description

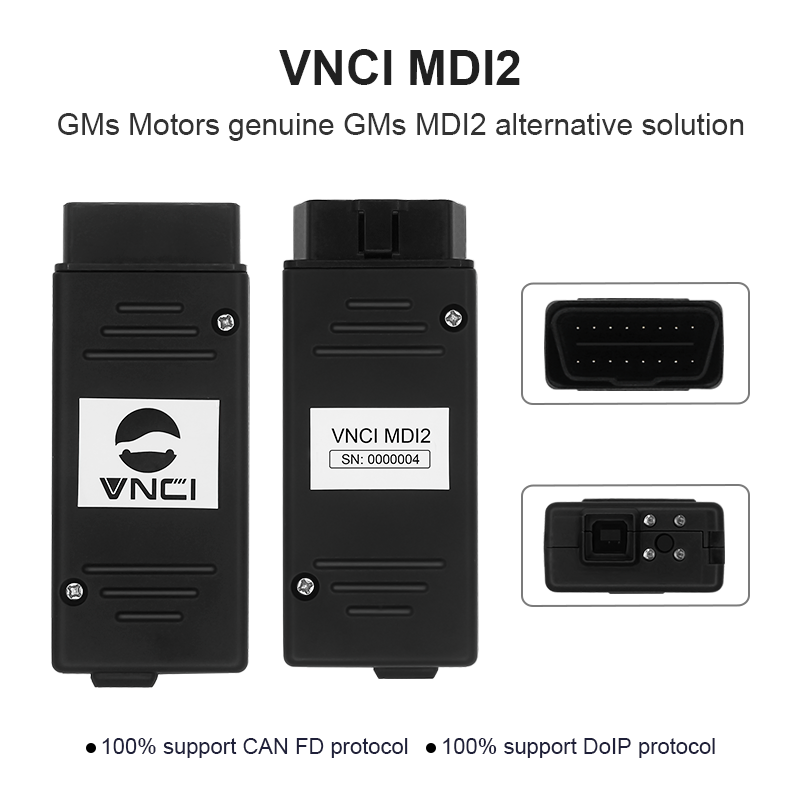

VNCI MDI2 diagnostic scanner for Cadillac, Chevrolet, Buick, GM vehicles，Compatible with the latest Origianl software driver Plug and play without installing any third-party patches,it can be replace origianl GM MDI2 interface. VNCI MDI2 come ture 100% origianl GM MDI2 interface function,but it only cost 10% price.
VNCI MDI2 is fully comparable to the original performance, in the processing system speed, security and programming speed have reached the original level.

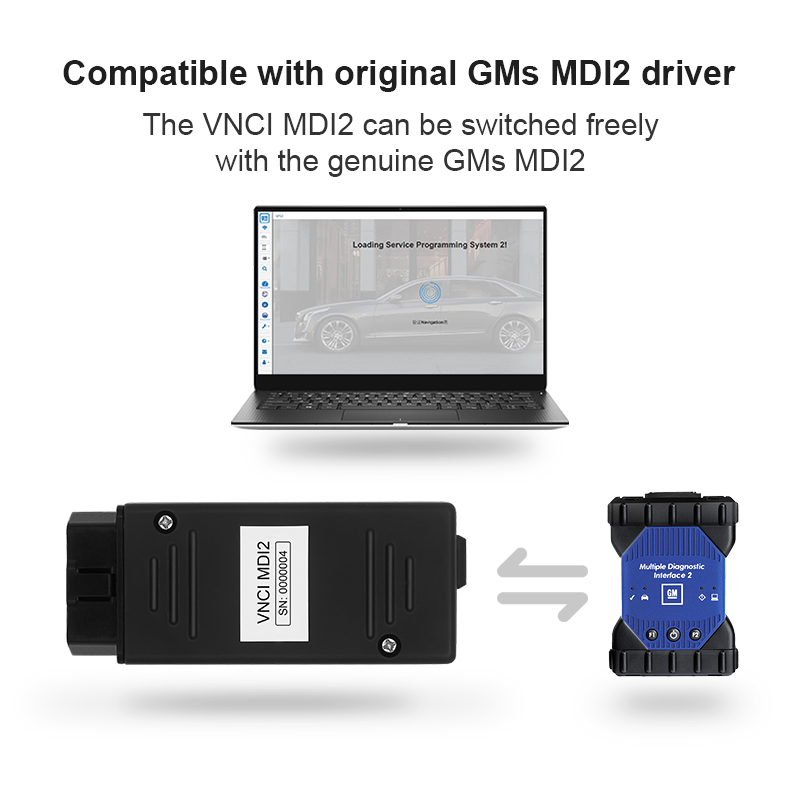

VNCI MDI2 is compatible with the original driver. MDI2 is applicable to General Motors Global A platform and global B platform series models, which can be used to repair automotive electronics and automotive electronics systems. Through MDI2 equipment data transfer transmission, PC computer softening system can be used to diagnose and program automotive electronics and electronic systems.
VNCI MDI2 supports the following Diagnostic systems: RDS, GDS2, Data Bus Diagnostic Tool (CAN Bus analyzer), for Tech2win. It also supports A Pass-Thru offline programming program: TIS2Web-SPS, which replaces the original MDI generation device functionality, but is only available on global A-platform models. It also supports global DPS offline programming and Pan-Asian DPS programming.
The VNCI MDI2's biggest advantage is support for GM Online Techline connect(TLC) software and the latest GM series CAN FD module for diagnosis and programming of CAN FD protocol modules Support SAE J2534 Pass-Thru: Available with GM PC-based diagnostics and reprogramming applications. Support for pass-through programming stored in flash calibration files such as vehicle on-board controllers (PCM, ABS, VTD, etc...)
Advantage
100% support CAN FD and DoIP communication
No need to change any files or third-party software, just plug and play.
Support TLC online software, synchronization compatible with the original latest driver
Simulate the original hardware device without worrying about hardware verification
Support B platform offline programming, decrypt 27 security check algorithm
Free registration of GDS, DPS, for Tech2win software
Faster and safer
Three connection modes:
USB Connection Mode: Connect via the USB cable.
AP(Access Point) Connection Mode: Connect computer with VNCI MDI2 via the point-to-point, similar to Bluetooth connection.
Station connection mode(WLAN Connection): Connect the VNCI MDI2 device and the computer to the same local area network.
VNCI MDI2 Features
Support for GMC, for Chevrolet, for Buick, for Cadillac and for Opel models from 1996 to the present
Support SAE J2534 Pass-Thru, CAN FD, DoIP, UART, Class2, KWP2000, GMLAN(CAN) protocol
Support key matching, offline and online module programming, diagnosis
Support CANFD/DoIP module diagnosis and programming

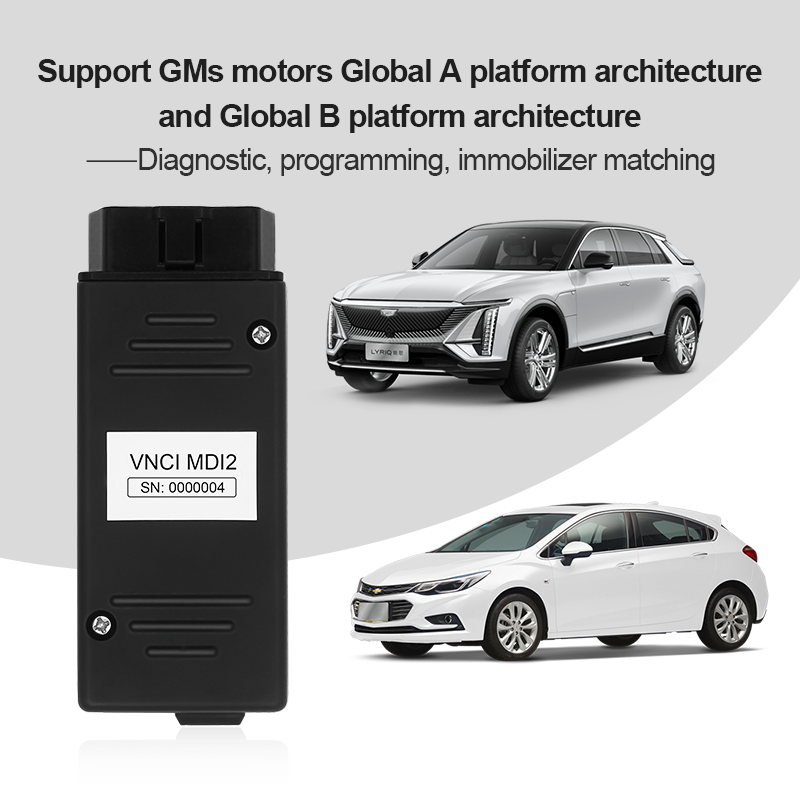

Support for GM global A platform models and global B platform models
Support Pass-Thru programming program TIS2WEB-SPS, compatible with all functions of MDI generation
Three connection modes
USB Connection Mode: Connect via the USB cable.
AP Connection (Wifi connection directly) Mode: Connects to a computer via the built-in WIFI of VNCI MDI2, similar to Bluetooth connection.
Station Connection Mode(WLAN Connection): Connect the VNCI MDI2 device and the computer to the same local area network.
AP connection mode and station connection mode can be switched through the device button.
